Operating Weight
1640 kg
Digging Depth
2670 mm

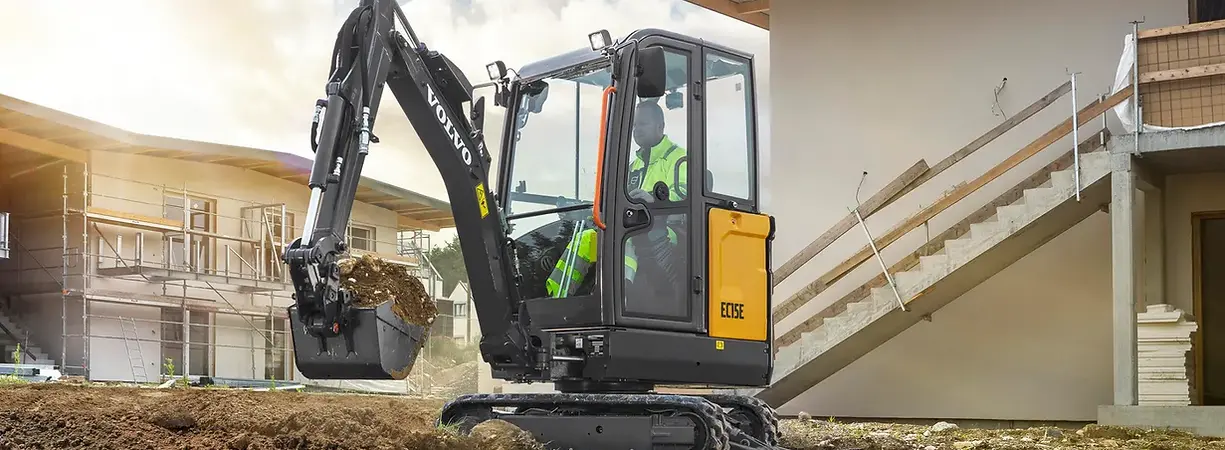

VOLVO EC15E
ENGINE Engine D0.9A Max. power at r/min 2 300 Gross kW 12 hp 16.3 According to ISO 2534 / SAE J1995 Max. torque Nm 52 at engine speed r/min 1 800 No. of cylinders 3 Displacement cm³ 898 Bore mm 72 Stroke mm 73.6 Compression ratio 24
WEIGHT AND GROUND PRESSURE Operating weight according to ISO 6016 kg 1 640 Ground pressure (cab) kPa 28.4 Transport weight kg 1 565 With rubber tracks mm 230 With short arm mm 950 With fuel tank capacity % 100 With canopy -kg 84 With long arm +kg 4 With long arm and heavy counterweight +kg 38
HYDRAULIC SYSTEM Maximum system flow l/min 34 Maximum flow for accessories l/min 30 Maximum operating pressure MPa 17
DIGGING PERFORMANCE Standard bucket width (blade, W/O side cutter) mm 450 Standard bucket mass kg 33 Standard bucket rated capacity l 36 Bucket rotation ° 196 Bucket breakout force (ISO) daN 1 290 Short arm tearout force (ISO) daN 795 Long arm tearout force (ISO) daN 695
ELECTRICAL SYSTEM Battery V 1 x 12 Battery capacity Ah 42 Alternator V/Ah 12/40
SWING SYSTEM Max, slew speed r/min 9.5 Max, slew torque daNm 243
TRAVEL SYSTEM Max, drawbar pull daN 1 160 Max. travel speed low km/h 1.9 Gradeability ° 30
UNDER CARRIAGE Bottom/top rollers per side 3 / 0 Track tension By grease piston Blade (width x height) mm 990 x 230
SERVICE REFILL Fuel tank l 21 Hydraulic system, total l 21 Hydraulic tank l 15
SOUND LEVEL Interior sound level according to ISO 6396 LpA dB(A) 78 External sound level according to ISO 6395 and EU Noise Directive (2000/14/EC) and 474-1:2006 +A1:200 LwA dB(A) 93
