Weight (kg) 91 Width (mm) 450 Storage Length (mm) 880 Operating Length (mm) 1167 Storage Height (mm) 585 Operating Height (mm) 987 Plate Contact Area (W x L) (mm) 418 x 500 Vibrator Force (kN) 20 Frequency (Hz) 80 Max. Gradient (°) 20 Engine Power (Hp / kW) 4.9 / 3.6 Engine RPM 3600 Maximum Travel Speed (m/min) 26 Compaction Force (kg/m²) 433 3 Axis Vibration* (m/sec²) 3.5 Usage Time (Mins) 245 Sound Power Level (dB LWA) 105

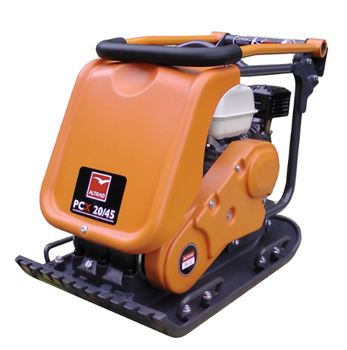

Heavyweight Plate Compactors used for soil compaction on new developments, repairs and maintenance jobs with large aggregates, cohesive material or moist content.
This plate is a hard hitting but user friendly machine in the heavy weight class.
